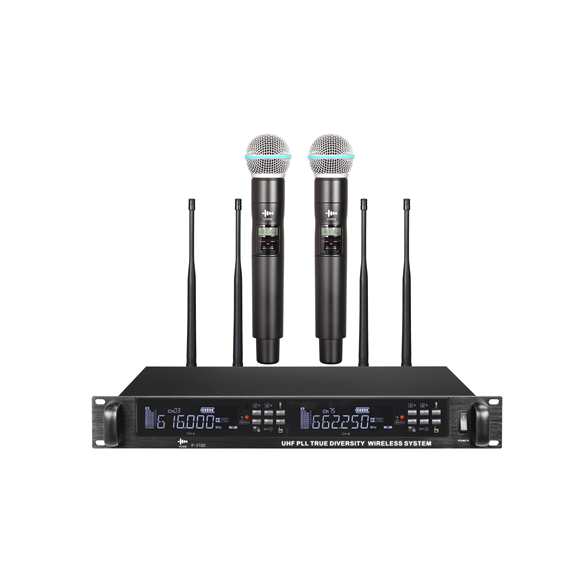

VOSS AUDIO WIRELESS MICROPHONE P-3100

Key Features:
Wideband transmission (50MHz) with segmented receiving technology (two independent 25MHz sub-bands).
Each of the two receiver channels supports 100 selectable frequencies.
Standard 1.5U metal chassis with built-in dual-channel receiving circuitry, offering professional-grade durability, heat resistance, and harmonic interference isolation.
Equipped with dual-mute control based on audio tone and RF signal strength, effectively preventing interference from other AV devices.
Features an ACT (Auto Channel Targeting) function: simply press the SET button to automatically and precisely sync the transmitter to the receiver’s operating channel—ensuring error-free operation.

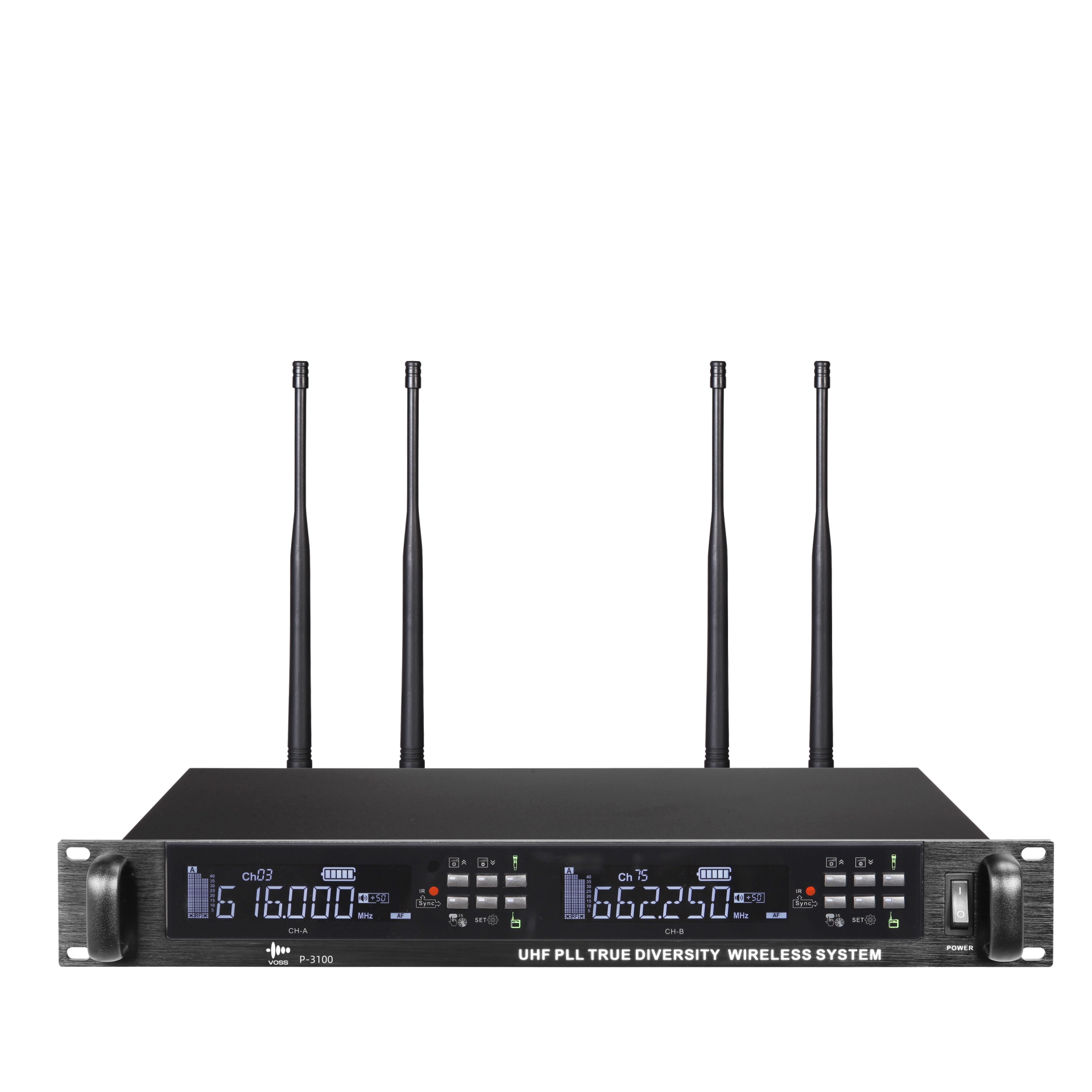

Wireless Gooseneck Microphone Receiver – Technical Specifications:
Display: LCD screen simultaneously shows RF/AF signal strength, channel, frequency, mute level, and more.
Oscillation Mode: PLL (Phase Locked Loop) frequency synthesis.
RF Stability: ±0.005% (within -10~50℃).
Carrier Frequency Band: UHF 500950MHz (standard: 640690MHz).
Bandwidth: 50MHz.
Frequency Adjustment: Use ∧ / ∨ to select frequency, then press "SET" to instantly sync the transmitter to the same channel.
Receiving Method: Dual-conversion superheterodyne.
Sensitivity: >80dB S/N at 6dBv input with 40KHz deviation.
Max Deviation: ±68KHz with audio expansion.
Overall S/N Ratio: >105dB (A-weighted).
Total Harmonic Distortion (THD): <0.5% @ 1KHz.
Frequency Response: 50Hz~18KHz ±3dB.
Max Output Voltage:
Independent Balanced: +10dB (2.5V) / 600Ω
Mixed Unbalanced: +4dB (1.25V) / 5KΩ
Mute Control Mode: Dual mute with audio tone and RF signal strength.
DC Power Supply: 12V / 500mA.

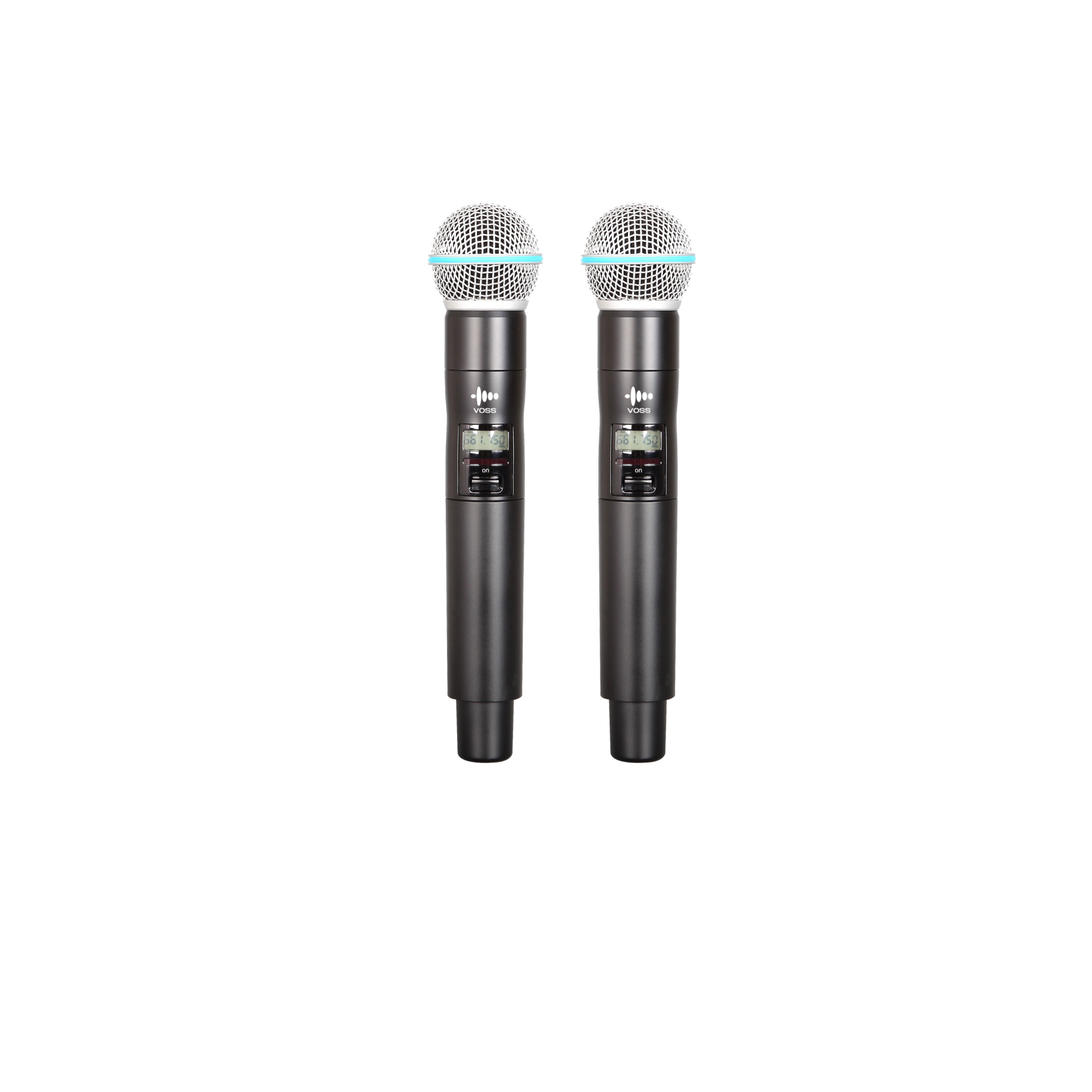

Wireless Gooseneck Microphone Transmitter – Technical Specifications:
Designed to prevent interference from mobile phone signals.
Body Material: Plastic injection molding.
Oscillation Mode: PLL phase-locked loop frequency synthesis.
Carrier Frequency Band: UHF 640~690MHz.
Bandwidth: 50MHz.
Frequency Adjustment: Automatically syncs to receiver’s working channel.
Output Power: High: 70mW / Low: 10mW.
Harmonic Emission: < -55dBC.
Max Deviation: ±45KHz.
Preset Channels: 200.
Frequency Response: 50Hz–18,000Hz.
Directivity: Supercardioid.
Sensitivity: -80 ±3dB.
Output Impedance: 750Ω.
Battery Type: 2 × AA batteries.
Operation Display: LCD shows battery level, channel, and low battery warning.
Max Transmission Range: 300 meters.
