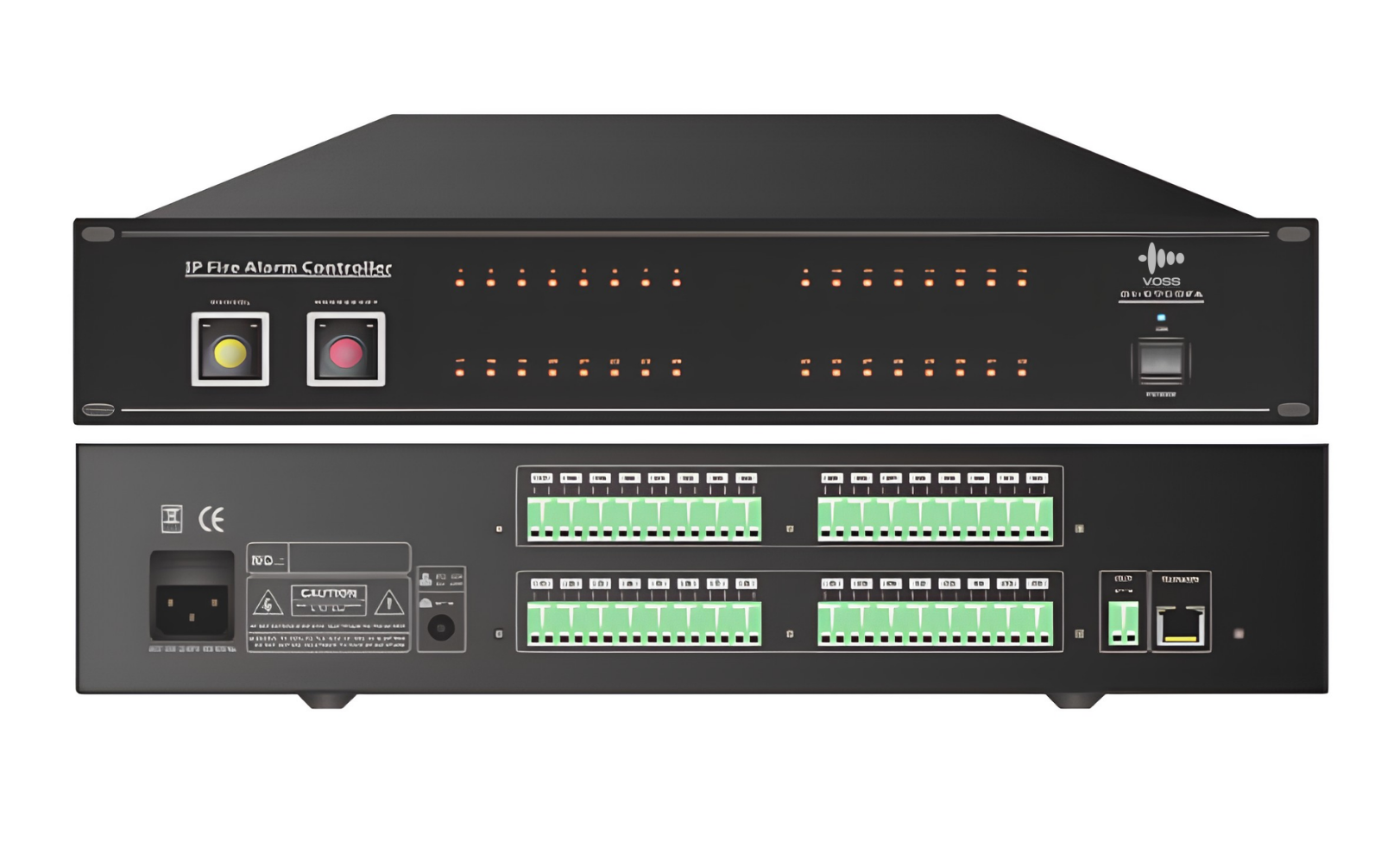

VOSS AUDIO IP Network Fire Alarm Panel DI-9700FA

Product Description

• IP Network Fire Alarm Panel (484×365×88mm, 6.8kg)
• Interface between fire alarm system and IP network audio system
• Automatically broadcasts pre-recorded voice messages when triggered by fire alarm control input
• Different zone triggers can be assigned with different voice messages
• 32 control inputs and 32 programmable control outputs
• Communicates with server via LAN RJ45 port to broadcast assigned message to designated zones
• Supports both IP network PA and intercom systems
• Each IP PA system supports 40+ units working together for 600+ speaker zones
• Built over existing LAN network — no dedicated network required
• Protocols: TCP, UDP, ARP, ICMP, IGMP | Speed: 10/100Mbps
• Audio sampling: 8K–48KHz, 16-bit | Transmission: 8Kbps–320Kbps
• S/N ≥90dB, Freq response 20Hz–20KHz, Delay ≤50ms
• Power: AC220–240V, 50–60Hz, ≤15W
