Product Description

• 32-Channel Fire Alarm Collection Interface – Extendable to 128 channels
• 1 Short Circuit Trigger Output – Auto output on fire signal
• Address Code Selection – Supports multiple unit expansion
• RJ45 Communication Interface – Connects to broadcast host
• Automatic Activation – Sends fire signal via network control

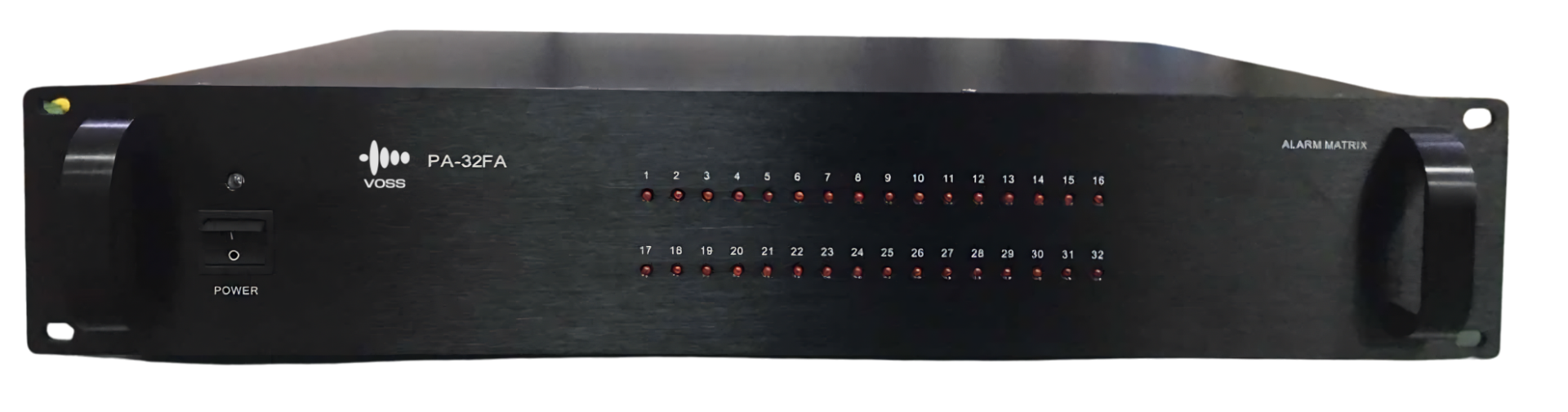

• Front Panel – Power switch, power indicator, 32-channel LED indicators

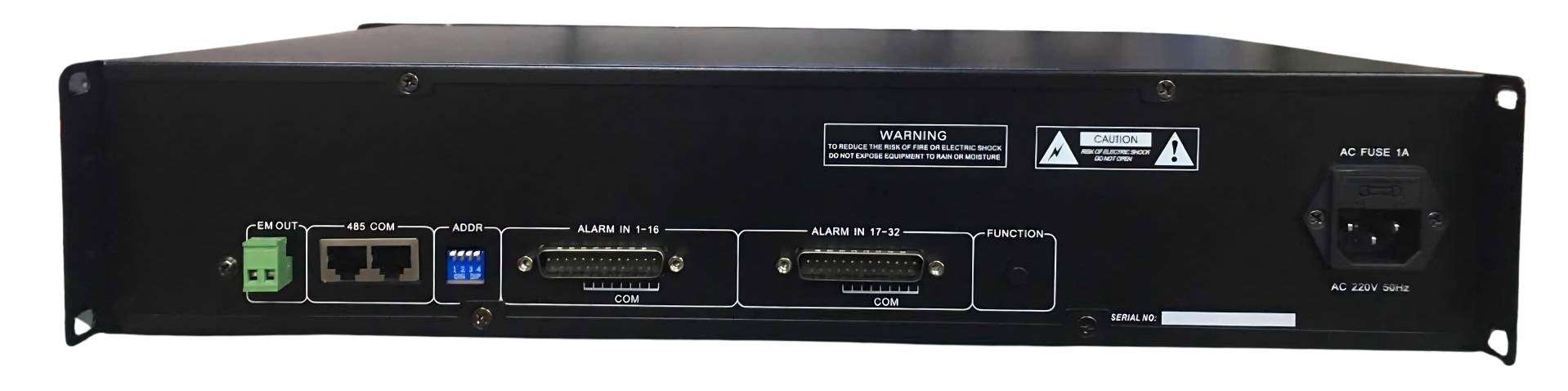

• Rear Panel – Trigger output, 485 bus, address setting, 32 alarm inputs, function switch, AC fuse
• Input Modes – 12–24V or short-circuit, selectable via FUNCTION button
• Communication Speed – 9600bps
• Protocol – RS485
• Trigger Input – Short circuit (0V) / 24V
• Trigger Output – Short circuit (0V)
• Power – ~220V/50Hz, ≤10W
• Protection – AC Fuse 1A
• Dimensions – 485 × 357 × 88 mm
• Weight – 5.5 kg
