VOSS AUDIO AMPLIFIER SWITCHER PA-100AC
Product Description
.png)
.png)
- 5 Main Amplifier Channels + 1 Spare – Auto-switches on fault
- Automatic Fault Detection – First fault unit switches to spare
- Manual Mode – For upgrades and maintenance

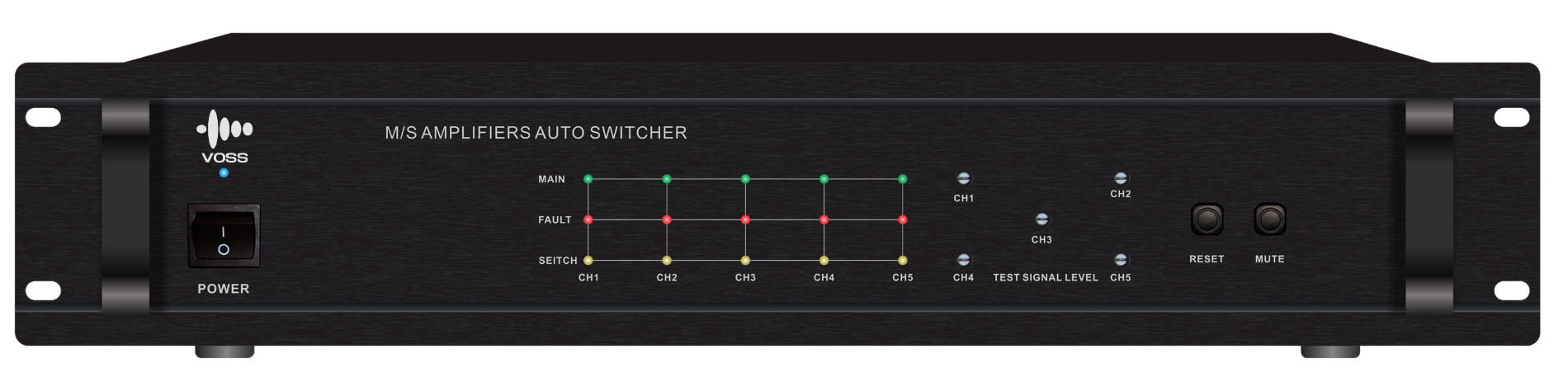

- Status Indicators – Normal (green), Fault (red), Spare (yellow)
- Prompt Tone – Rings on main amplifier failure; mute button available
- Sensitivity Controls – Adjust detector sensitivity
- Reset Button – Resume main amplifier (manual mode)

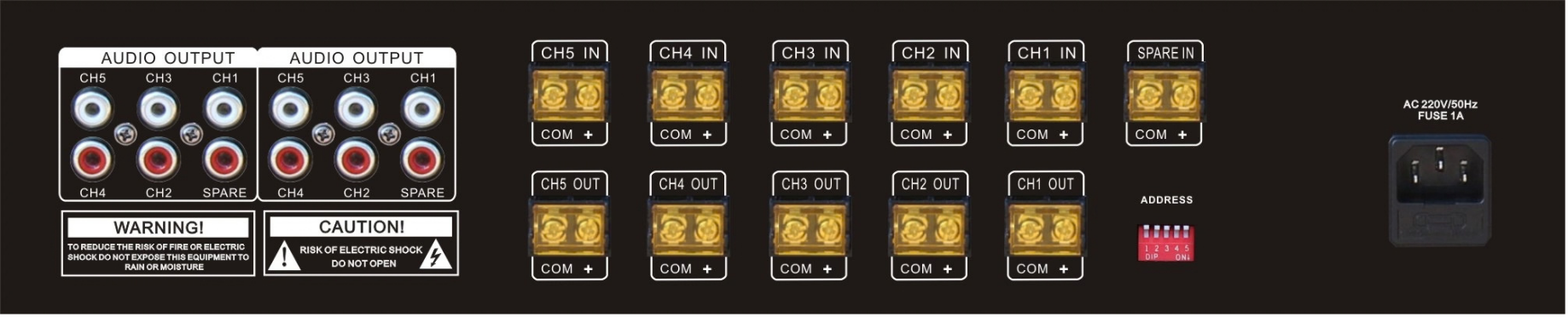

- Audio Inputs – CH1–CH5 for main amplifiers
- Audio Outputs – CH1–CH5 to main amplifiers; spare output to spare amplifier
- Amplified Signal Inputs – CH1–CH5 (100V&COM or 70V&COM)
- Standby Amplified Input – From standby amplifier
- Speaker Outputs – For connecting speakers
- Power Supply – DC24V or AC100~240V, 50/60Hz
- Power Consumption – 20~25W
- Channel Capacity – 150V/20A, audio signal
- Input / Output Signal – 0.775V (0dB), 10kΩ, unbalanced
- Dimensions – 89 × 483 × 350 mm
- Net Weight – 6.9 kg
